ROMI D Series – New Generation

Vertical Machining Centers

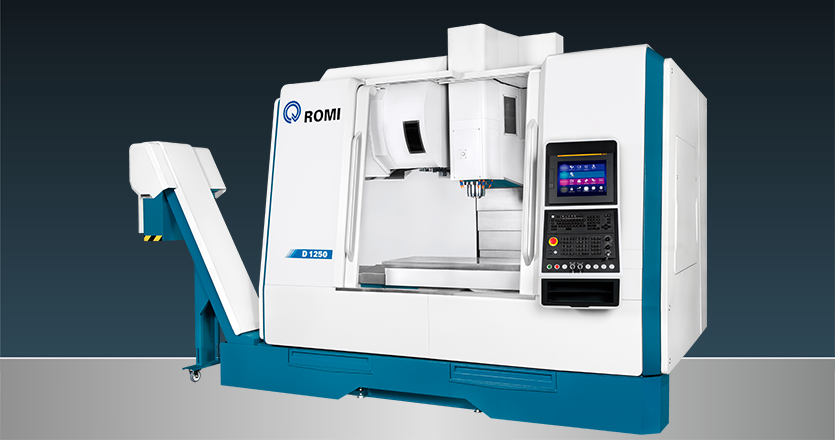

ROMI D 1250
STRUCTURE
HEADSTOCK
CNC FANUC 0I-MH IHMI
ROMI D Series – New Generation

Presentation

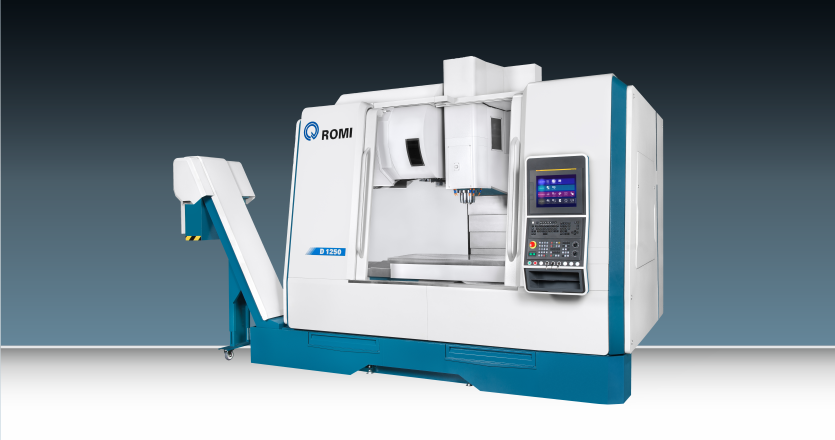

The Romi D Series New Generation vertical machining center includes 3 models:  the ROMI D 800, ROMI D 1000, and ROMI D 1250. They are extremely versatile and are suitable for several machining applications. Each VMC features a larger workspace, offer high rigidity even under severe machining conditions, and present thermal and geometric stability ensuring great performance, precision, and productivity.

The main motor is directly coupled to the headstock cartridge with versions of 10,000 or 15,000 rpm and with ultra-precision bearings that enable excellent accuracy and minimal temperature increases even when operating continuously in high rpm’s.

Our D Series New Generation vertical machining centers are equipped with a Fanuc 0i-MF i-HMI CNC, which offers the user great facilities for programming with the main screen with different areas for planning, machining, improvements, and utilities, allowing access to functions in only two clicks.

ROMI D Series – New Generation

Main Technical Features

ROMI D 800ROMI D 1000ROMI D 1250
Spindle taper (ISO)ISO404040
Speed range (version 10.000 rpm)rpm10 a 10,00010 a 10,00010 a 10,000
Speed range (version 15.000 rpm)rpm15 to 15,00015 to 15,00015 to 15,000
Rapid traverse (X / Y / Z axes)m/min (ipm)40 (1,575)40 (1,575)40 (1,575)
Table Surfacemm (in)914 x 560 (36 x 22)1,220 x 560 (48 x 22)1,320 x 560 (52 x 22)
Tools capacityun303030
CNC ModelFanuc 0i-MF i-HMIFanuc 0i-MF i-HMIFanuc 0i-MF i-HMI
